Insert Ready Poker Chips: Flush Laminated Artwork Without The Sticker Feel

Insert-ready poker chips solve a familiar production problem. You want protected, interchangeable artwork that sits flat, feels premium, and survives heavy handling. The answer is recessed-center engineering matched to the right insert stock, adhesive, lamination, and sealing workflow. When each variable is dialed in, the finish looks molded-in, not stuck on.

This guide explains chip construction, insert thickness targets, paper vs vinyl choices, die-cut tolerances, adhesive types, sealing, and QC for scale. It also outlines a step-by-step build from first articles to batch runs, and where BlanksInc chip lines fit, including 8-Stripe, Solid Color Insert-Ready, and Magnetic 8-Stripe variants for menu boards, trackers, and displays.

Recessed-center engineering and why it matters

Insert-ready blanks use a precision-molded recess in the chip center. The recess depth is matched to a laminated insert stack so the finished face sits flush. This removes raised edges, reduces snagging, and prevents a cheap sticker feel. It also stabilizes artwork under pressure and during shuffling.

Dimensional control is critical. In production, consistent molding and a clean, dry cavity support predictable seating. Recess geometry should have a slight clearance at the edge to accept die-cut inserts without buckling. That is what enables repeatable assembly and clean edges at scale.

Insert thickness targets

Aim for a total insert stack that meets the recess depth without protruding. A common spec for 39 mm chips targets approximately 0.25 to 0.33 mm total thickness, including print stock, adhesive, and laminate. Actual fit depends on the chip line’s recess. Validate with pilot cuts.

General guidance:

• Paper path: 80 to 100 gsm coated sheet plus 3 to 5 mil (0.076 to 0.127 mm) single-sided laminate and a thin adhesive layer usually fits most insert-ready recesses.

• Vinyl path: Calendered printable vinyl at 3 to 4 mil with a 2 to 3 mil overlaminate often reaches the same range. Use thin, high-tack adhesive systems to avoid overbuild.

Always measure the first article with calipers. If the face sits low, step up laminate thickness or switch to a higher caliper stock. If it sits proud, reduce laminate or choose a thinner adhesive liner.

Lamination choices: paper vs vinyl

Choose based on environment and handling.

• Paper plus film laminate: Sharp print detail, low glare or gloss options, cost-efficient at volume. Good for corporate sets and controlled indoor use. The laminate carries the abrasion resistance.

• Printable vinyl plus overlaminate: Higher tear resistance and better moisture tolerance. Ideal for chips used in event-heavy settings or public displays. Slightly softer edge feel during press-in, which can help seat flush edges.

For heavy use, favor scuff-resistant overlaminates and fully cured inks before lamination to minimize edge telegraphing.

Die-cut tolerances and edge quality

Tight circular registration prevents white slivers and overhangs. Recommended tolerances:

• Diameter: hold within ±0.10 mm relative to the recess inner diameter.

• Concentricity: keep off-center drift under 0.10 mm.

• Edge: clean, burr-free. Dull dies cause fuzzing that telegraphs at the rim.

If you laser-cut, tune power and speed to avoid heat-shrink or yellowing on paper edges. For vinyl, avoid melt ridges. In both cases, a kiss-cut approach with stable registration sheets improves repeatability.

Adhesives and seating pressure

Use permanent pressure-sensitive adhesives (PSA) with:

• High initial tack for fast grab.

• Solvent or acrylic systems rated for plastics.

• Thin coat weight to control stack height.

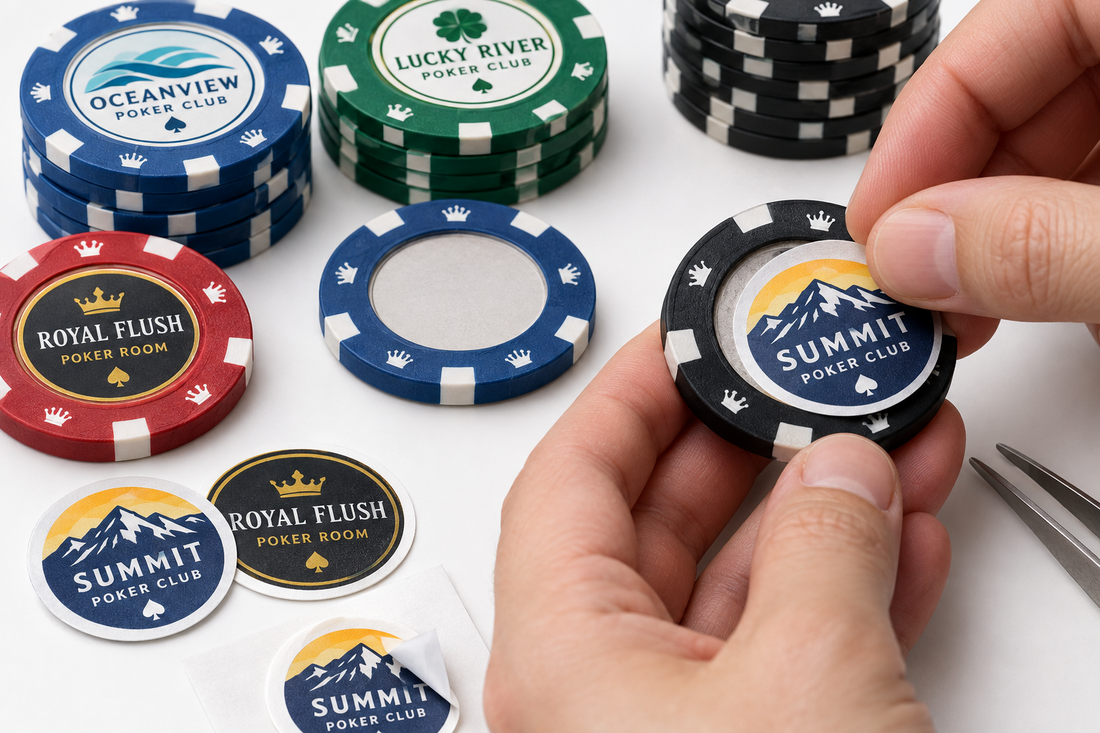

Clean the recess with 70 to 90 percent isopropyl alcohol and lint-free wipes. Apply inserts square to the center, then seat with even pressure using a flat pad or arbor press fitted with a non-marring face. Avoid localized force that can dish the laminate.

Sealing for heavy use

A sealed surface resists staining and edge ingress. Options:

• Overlaminate with scuff-resistant films, gloss or matte.

• UV-clear coat over the laminate if your workflow supports it, testing for compatibility. Do not overbake; excessive cure can embrittle films.

• Edge protection relies on flush fit. Gaps collect debris. If the insert sits low, move up one laminate grade.

Run a basic rub test and a light solvent wipe test on first articles to confirm durability.

Production steps and proofing

A dependable insert workflow follows a short, repeatable path:

1. Spec selection: choose insert-ready chip line and define recess diameter and depth.

2. Artwork prep: vector art within safe zone, CMYK profiles, 300 ppi raster elements if used.

3. Print and dry: fully cure inks before lamination.

4. Laminate: select caliper to meet stack target.

5. Die-cut or laser-cut: hold diameter within stated tolerance.

6. Surface prep: clean chip recesses.

7. Apply: align, place, seat with even pressure.

8. QC: check flushness, concentricity, adhesion, and surface mar.

Proofing:

• Build 10 to 25 first articles to lock thickness and pressure settings.

• Document laminate SKU, die diameter, press pressure, and cure time.

• Keep a master reference chip for visual match.

Scaling to hundreds and thousands

Consistency depends on controlled variables:

• Use the same chip lot across a run when possible.

• Standardize insert sheets, laminate rolls, die-cutter settings, and press pressure.

• Employ multi-cavity jigs or trays for faster seating with uniform force.

• Perform in-process checks every 50 to 100 pieces for diameter, flushness, and adhesion.

• Store finished chips flat for 24 hours after assembly to allow adhesive flow.

Product lines for insert builds and displays

BlanksInc 8-Stripe Insert-Ready chips pair a recessed center with an 11.5 g feel and classic edge style. They support laminated inserts and also accept UV direct print when desired. For large artwork zones, Solid Color Insert-Ready blanks provide a minimal face with an oversized usable area that highlights logos and text. For magnetic menu boards, whiteboard trackers, and display systems, Magnetic 8-Stripe Insert-Ready chips integrate a core magnet and are optimized exclusively for inserts, not direct UV.

If you need on-demand UV graphics, BlanksInc also offers UV-ready and foil-stamp-ready formats. For metallic branding, foil-ready chips maintain crisp impressions with hot foil systems.

You can explore insert-ready poker chips and color options in the BlanksInc collection of poker chips for sale. If you plan a high-volume program, review poker chips bulk assortments for dependable replenishment, or source blank chips built for repeatable production.

FAQ

• What are rectangle poker chips called? Rectangular gaming checks are commonly called plaques. They are used for higher denominations in some casinos.

• What are square chips called? Square gaming pieces are generally referred to as plaques or square plaques, depending on region and use.

• How much are rectangle poker chips worth? Plaque denominations vary by venue and design. Value is set by the issuing casino or program, not by the shape.

• How can I design my own poker chips? Choose a finish method first. For insert builds, prepare vector art within the safe zone, select paper or vinyl plus laminate to match the recess, cut to tight tolerances, and seat with even pressure. For direct print, use UV-ready blanks and a matched jig.

• What are some types of chips? UV-ready, foil-stamp-ready, insert-ready with a recessed center, solid color insert-ready, and magnetic insert-only chips for display uses.

Next steps

If you are building laminated inserts at scale, start with a 10 to 25 piece pilot to finalize stack height and pressure, then document the settings and move to batches. For sourcing, review BlanksInc as a poker chip supplier with insert-ready lines that ship quickly for B2B programs.
